Custom Performance Engineering

Delta Core™ Subaru WRX Top Mount Intercooler TMIC ('15-'21)

Delta Core™ Subaru WRX Top Mount Intercooler TMIC ('15-'21)

Regular price $698.95 USD
Regular price Sale price $698.95 USD
Sale Sold out
Shipping calculated at checkout.

SKU:SBCK00001T

Box Size

22 in x 22 in x 8 in

Box Weight

25.0 lbs.

Lead Time if Out of Stock

Lead time for this product, if out of stock, is between 1-2 weeks. It is a popular item that we try to keep on hand, but surges can drive it out of stock.

View full details

FEATURES:

  • 13.23" x 10.38" x 4.00" core
  • Low-turbulence end tank design
  • Maximized core design
  • Works with OEM piping
  • Cast-in-place brackets
  • Much lower, more consistent charge temps
  • Bolt-in design with no vehicle modification needed
  • Fully cast end tanks

PRODUCT DESCRIPTION:

After months of engineering and development, cp-e® is proud to offer the ∆Core™ top mount intercooler for the 2015–2021 Subaru WRX. The factory TMIC is fine for drivers who don't plan to modify, but once you're chasing more power, an upgraded intercooler is essential.

We began by finding the largest core that would fit without irreversible modification. The ∆Core™ TMIC uses a bar-and-plate design for high efficiency.

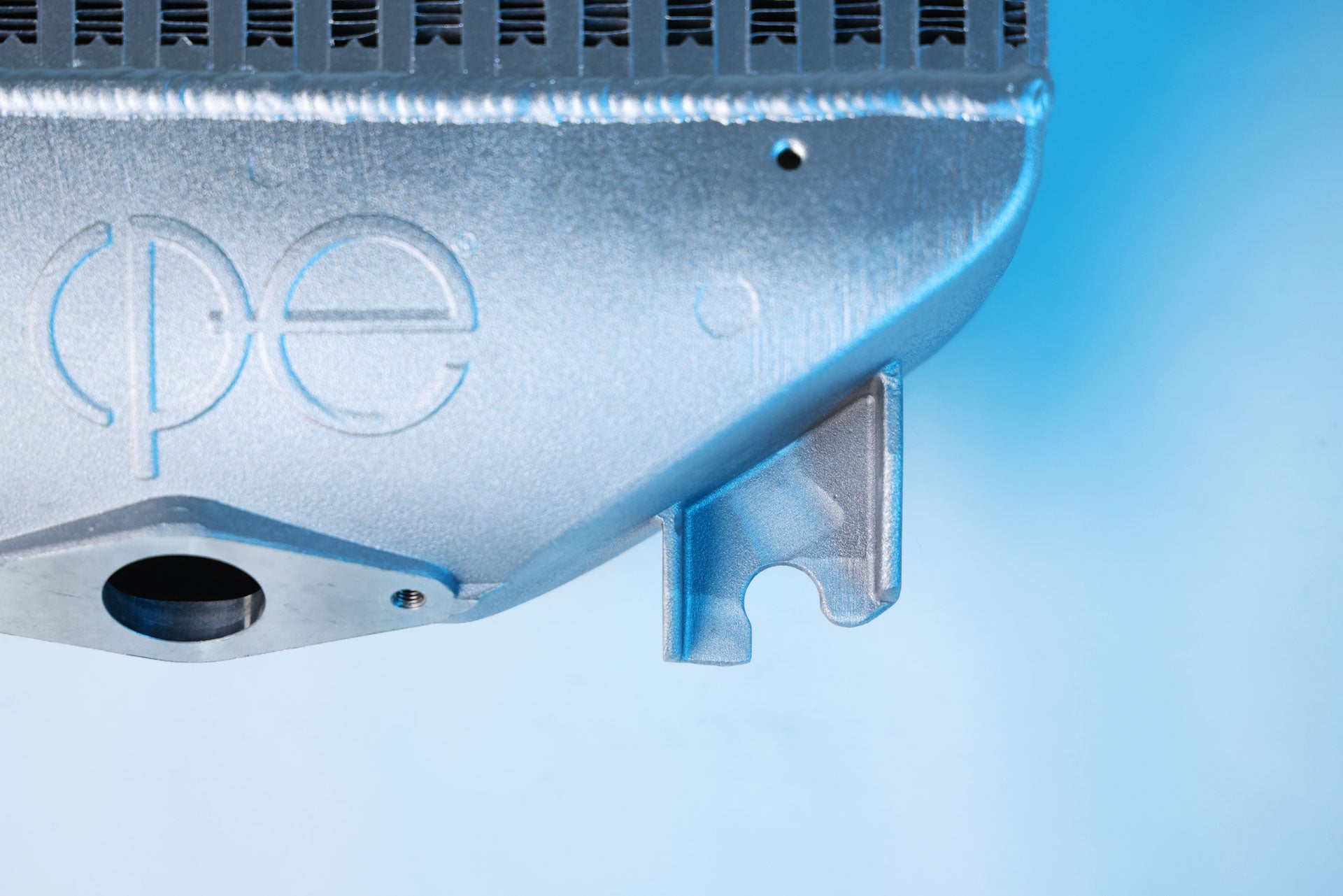

Next, we designed end tanks that enclose the large core with no cutting, drilling, or permanent modification. Cast-in-place brackets mount the intercooler in the stock location and line it up with the factory intercooler piping, so you can upgrade your piping later as power demands grow.

Like every cp-e® intercooler, it uses cast end tanks that are welded and pressure tested with the core. Hours of design and computational flow analysis shaped their interior to virtually eliminate turbulence. Bigger intercoolers often add turbo lag and pressure loss because of their size and turbulent tanks, but our smaller, more efficient tanks keep the WRX responsive while greatly increasing intercooler capacity.

The end tanks distribute air evenly across the core. Since the back half of a typical core contributes only 25% of the cooling, even distribution gives the FA20 the most consistent intake conditions.

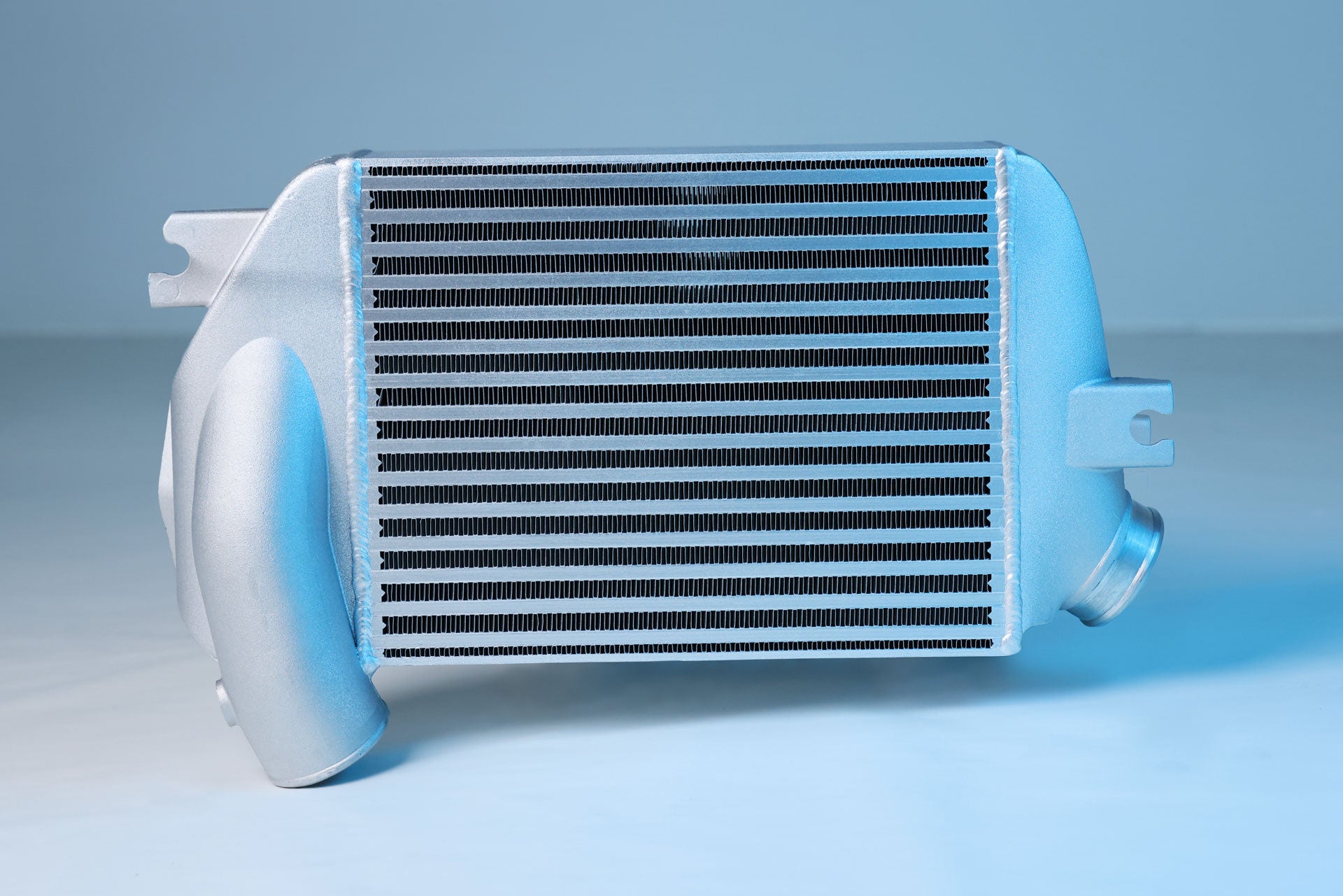

Fully Optimized Core Size

To build one of the most efficient intercoolers possible, we made the largest core that would fit, using every square inch of usable space under the stock valence. Recesses in the core provide a perfect fit at the largest size physically possible without permanent modification.

Fully Cast End Tanks

For durability at high horsepower, nothing beats a casting. Cut-and-welded tanks can't match its reliability, but many manufacturers skip casting because of the cost. We use fully cast end tanks on all of our intercoolers.

Turbulence Reduction Fins

The best intercoolers use every inch of their core. Our turbulence reduction fins spread air evenly inside the core so it cools at peak efficiency throughout.
