Delta Core™ Ford Focus ST Lightweight Front Mount Intercooler

Delta Core™ Ford Focus ST Lightweight Front Mount Intercooler

Regular price $649.95 USD
Regular price Sale price $649.95 USD
Sale Sold out
Shipping calculated at checkout.
Finish: Titan™

SKU:FDCK00006T

Box Size

45 in x 12 in x 12 in

Box Weight

32.0 lbs.

Lead Time if Out of Stock

Lead time for this product, if out of stock, is between 1-2 weeks. It is a popular item that we try to keep on hand, but surges can drive it out of stock.

View full details

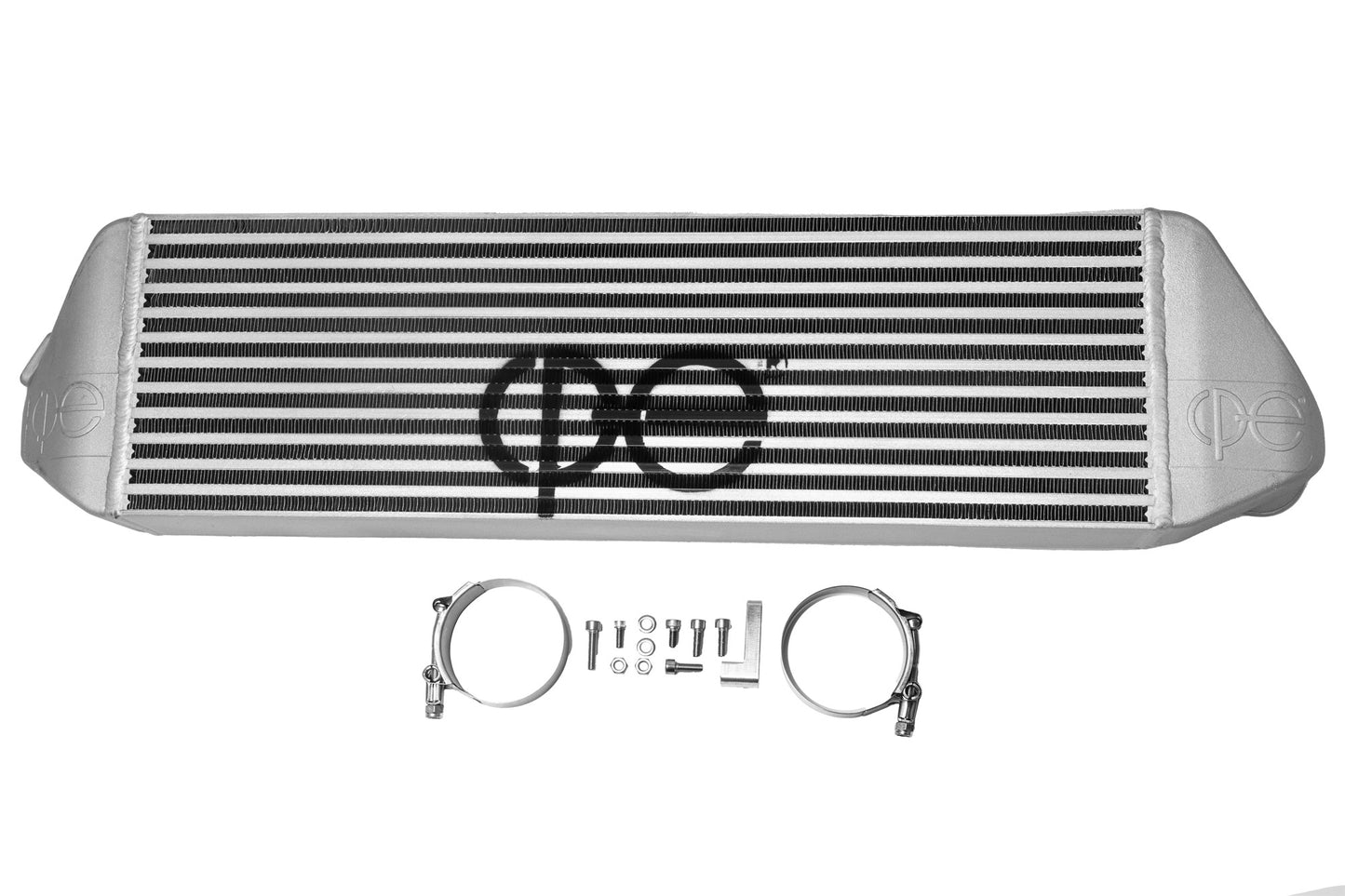

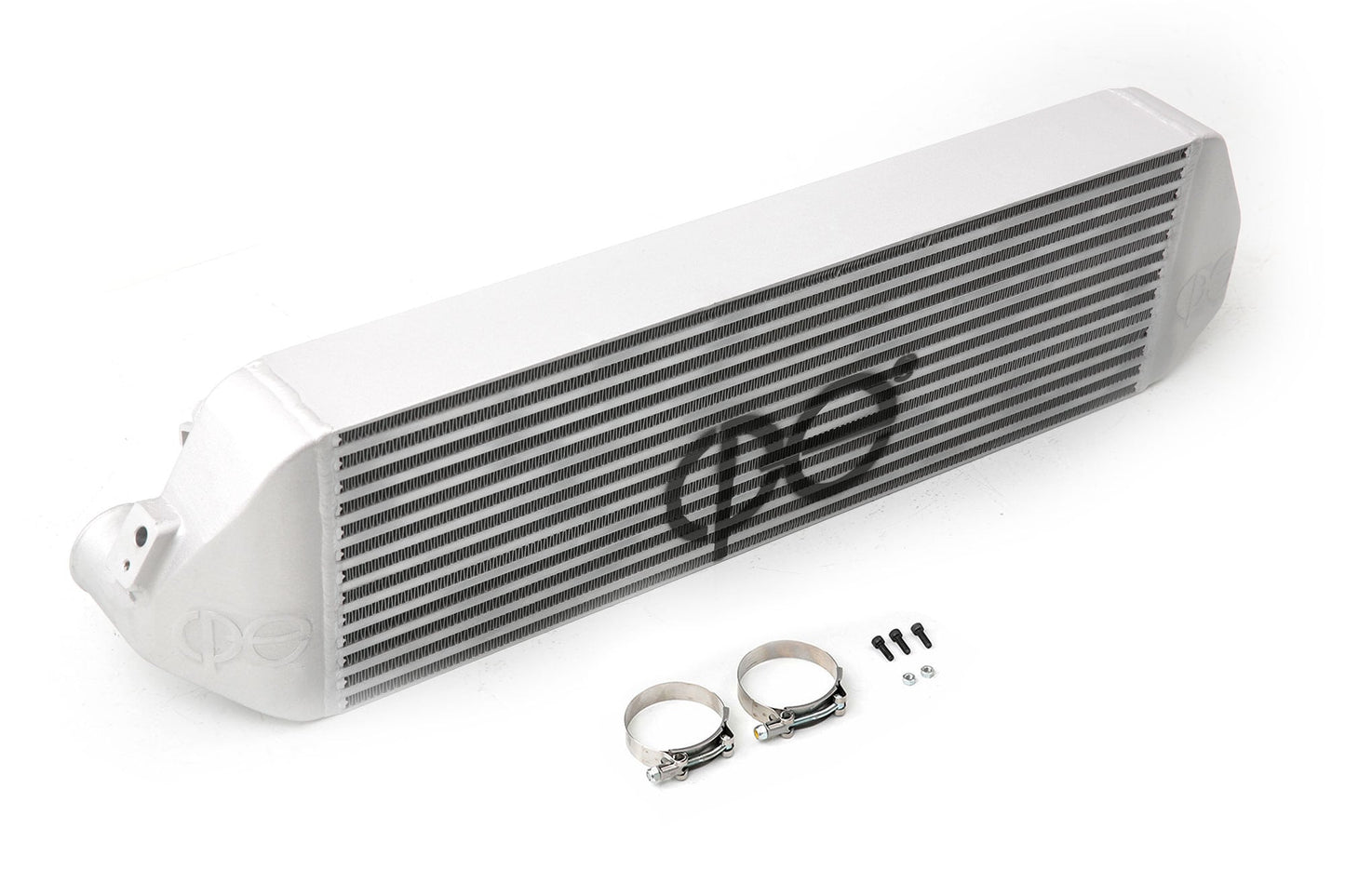

Ford Focus ST Lightweight Front Mount Intercooler

After months of engineering and development, cp-e® is proud to offer the lightweight front mount intercooler for the Focus ST. The factory intercooler is fine for drivers who don't plan to modify, but once you're chasing more speed, an upgraded intercooler is essential.

  • Lightweight, highly efficient design
  • Minimal pressure drop
  • Maximized core design
  • Much lower, more consistent charge temps
  • Bolt-in design with no vehicle modification needed
  • Fully cast end tanks

We started by finding the largest core that would fit without major modification. After our original large-core FMIC, we built this lightweight version to combine strong performance with a smaller footprint: a 28" x 8.25" x 3.5" bar-and-plate core that performs great while saving weight.

Focus ST Lightweight FMIC Design

We then designed end tanks that enclose the core with no cutting, drilling, or permanent modification. Laser-cut brackets mount the intercooler in the factory location and match the stock intercooler piping, so you can upgrade piping later as your power goals grow.

Like every cp-e® intercooler, it uses cast end tanks that are welded and pressure tested with the core. Hours of design and computational flow analysis shaped their internal design to virtually eliminate turbulence. Upgraded intercoolers often suffer from added turbo lag and pressure loss caused by large cores and turbulent tanks. Our smaller, more efficient tanks minimize turbulence, keeping the car responsive while greatly increasing intercooler capacity.

The end tanks distribute air evenly across the core. Because the back half of a typical core handles only 25% of the cooling, this even distribution gives the engine the most consistent intake conditions.

Focus ST Lightweight FMIC Highlights

Turbulence Reduction Fins

Adding intercooler size usually means adding pressure drop from turbulence. Our precisely calculated turbulence reduction fins smooth airflow from the end tanks into the core to prevent that.

The result on the road: very low pressure drop and no loss in spool time.

Fully Cast Endtanks

Fully Cast End Tanks

Nothing beats a casting for durability at high horsepower. Cut-and-welded tanks can't come close in reliability, but casting is expensive, so many manufacturers skip it.

We don't. Every cp-e® front mount intercooler uses fully cast end tanks.

    Customers praised this intercooler for dramatically lowering charge temps by 50+ degrees, with "charge temps in the low 80's" versus 120 on stock. Installation is straightforward with clear instructions, though aligning bottom screws can be tricky. Shoppers noted improved performance past 5k rpm and excellent build quality.

    • 5 stars: 11 (100%)
    • 4 stars: 0 (0%)
    • 3 stars: 0 (0%)
    • 2 stars: 0 (0%)
    • 1 star: 0 (0%)
    D
    DuSTeRS
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    Great product! Easy install comes with everything you need and doesn’t require any modifications! Saw a 50+ drop in charge tempatures! Plus it looks great on the car! Would not reccommend any other fmic brand!

    P
    Pic398
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    The best thing you can do for the car other than a AP worth every dollar! The hardest part about install is getting that darn from bumper off after that it's a littler nerve racking to align the bottom mounting screws unless you've got tiny hands you'll have to put them in and have a second person help you guide the core in so those two screws don't fall out. My charge temps are extremely low and where simply giving the throttle a small push would cause the charge temps to start rising on the stock core with this core they don't even budge completely flooring it in 1st-2nd. Pulls way harder past 5k rpm!

    P
    Pic398
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    The hardest part about install is getting that darn from bumper off after that it's a littler nerve racking to align the bottom mounting screws unless you've got tiny hands you'll have to put them in and have a second person help you guide the core in so those two screws don't fall out. My charge temps are extremely low and where simply giving the throttle a small push would cause the charge temps to start rising on the stock core with this core they don't even budge completely flooring it in 1st-2nd. Pulls way harder past 5k rpm!

    B
    Brnpaprbag1
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    By far the best bolt on I've installed, the air temp drop is amazing. I recommend this for sure

    a
    asifmohideen
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    Very good product. The install was effortless. Thanks CP-E!

    n
    nate4g63
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    What an awesome intercooler. Killer quality and the install was a breeze. Charge temps were in the low 80's with ambient at 74 after 5 or 6 hard pulls. Factory intercooler I was hitting 120 the same day. I would highly recommend this for anyone looking to upgrade.

    P
    Prashanth R.
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    Top quality product, easy to install and instructions are very clear.

    M
    Meinfast07
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    Was super impressed with the IC! Beautiful welds and top notch packaging. Instructions with color pics made the install super easy and went much faster than I initially thought!

    W
    Will
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    GREAT product, EASY install, AWESOME performance results!

    W
    Will
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    The kit is nicely built and included everything needed to get this baby tucked in there. Great fitment and product quality was superb; very satisfied with the purchase.

    J
    Jeremy
    cp-e™ ΔCore™ Ford Focus ST Lightweight FMIC

    This thing looks amazing!!! I can't wait to get it installed! I wanted the larger one but figured I could save a few bucks and go this route. It still has much more volume internally than more expensive competitors.
