Delta Core™ Race V2 Ford Mustang EcoBoost FMIC Front Mount Intercooler

Delta Core™ Race V2 Ford Mustang EcoBoost FMIC Front Mount Intercooler

Regular price $799.95 USD
Regular price Sale price $799.95 USD
Sale Sold out
Shipping calculated at checkout.
Finish: Titan™

SKU:FDCK00005T

Box Size

34 in x 24 in x 12 in

Box Weight

45.0 lbs.

Lead Time if Out of Stock

The lead time for this product, if out of stock, is 4-9 weeks. It is typically Built-To-Order and not on our shelves.

View full details

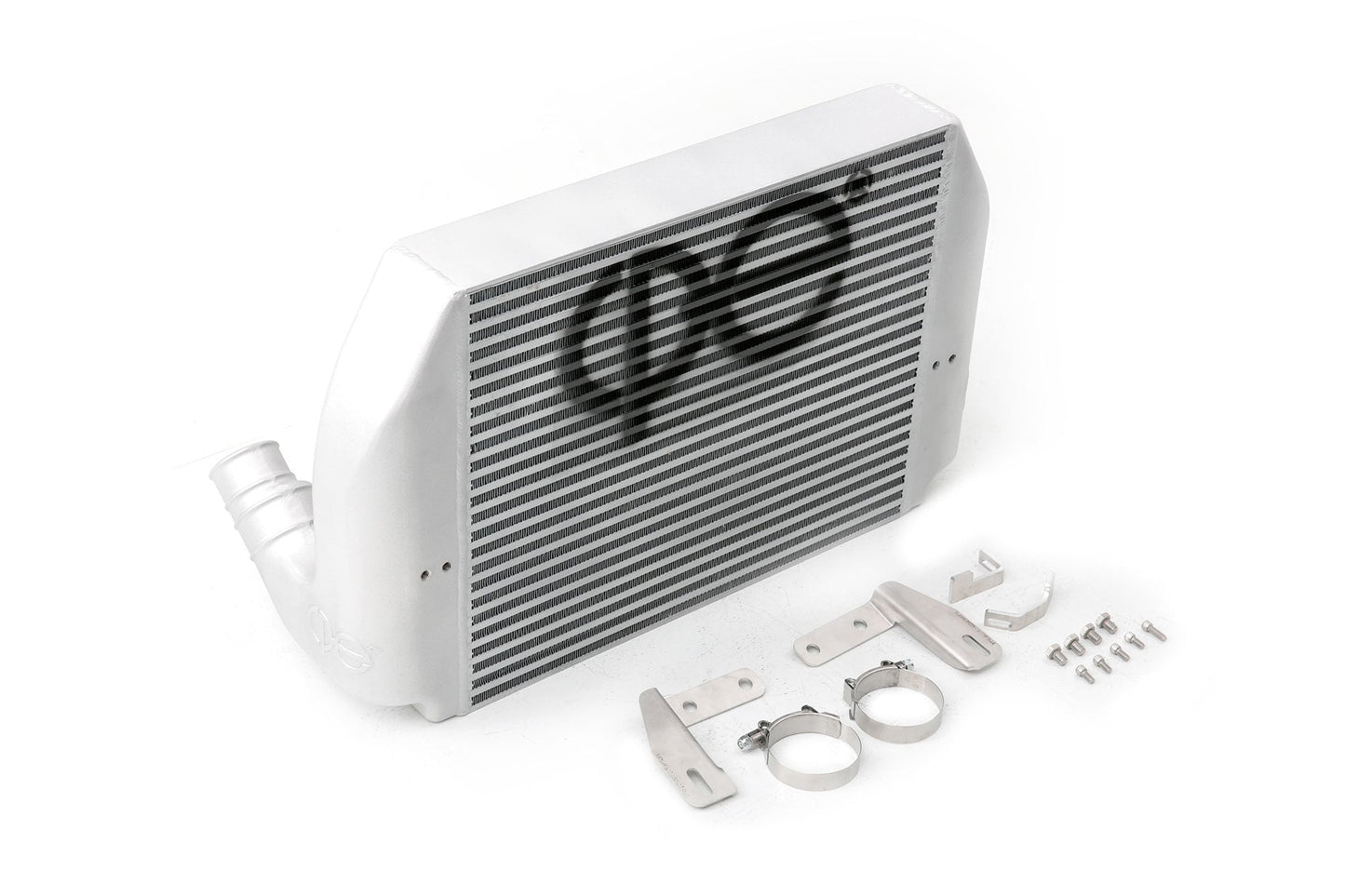

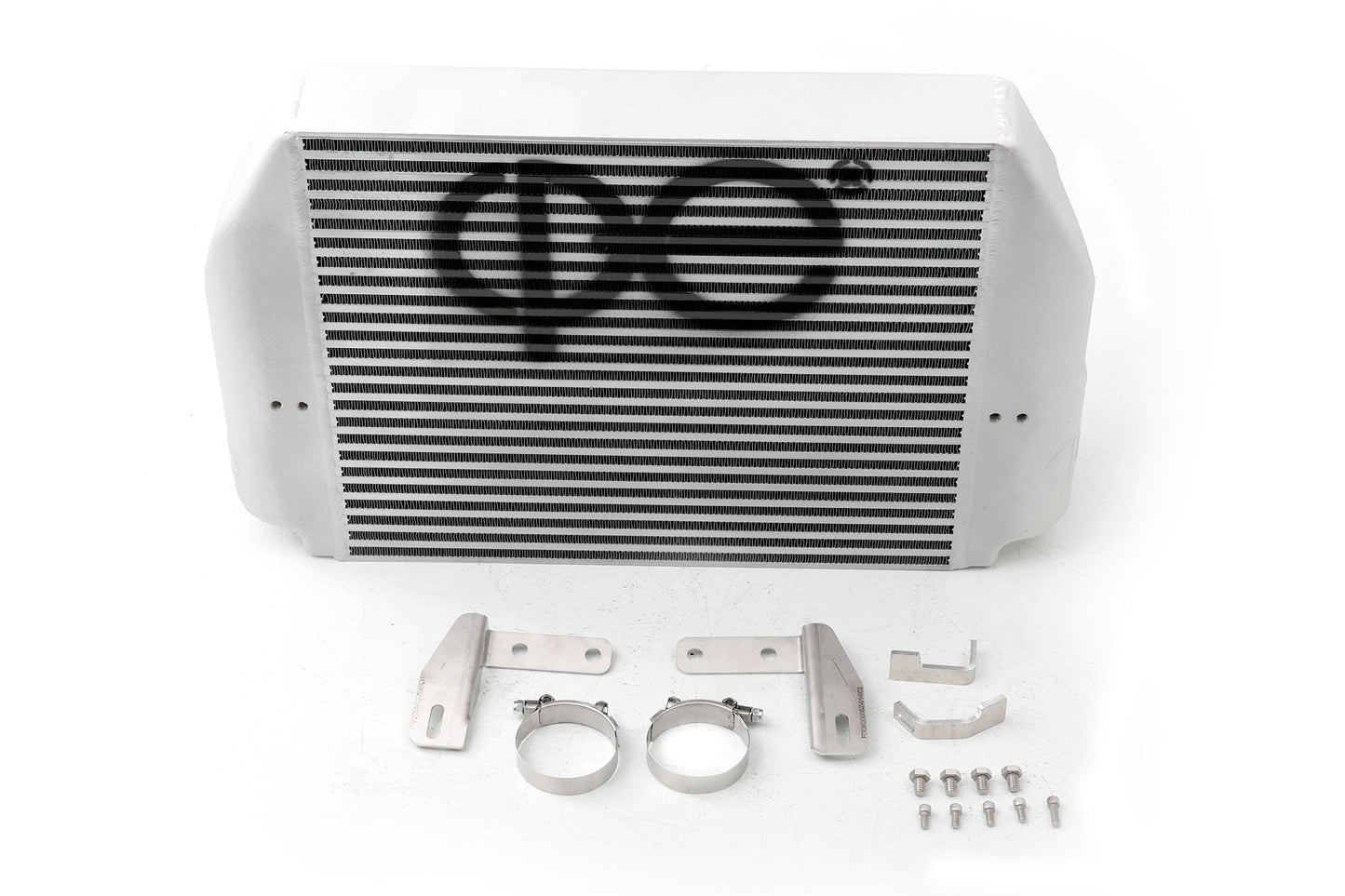

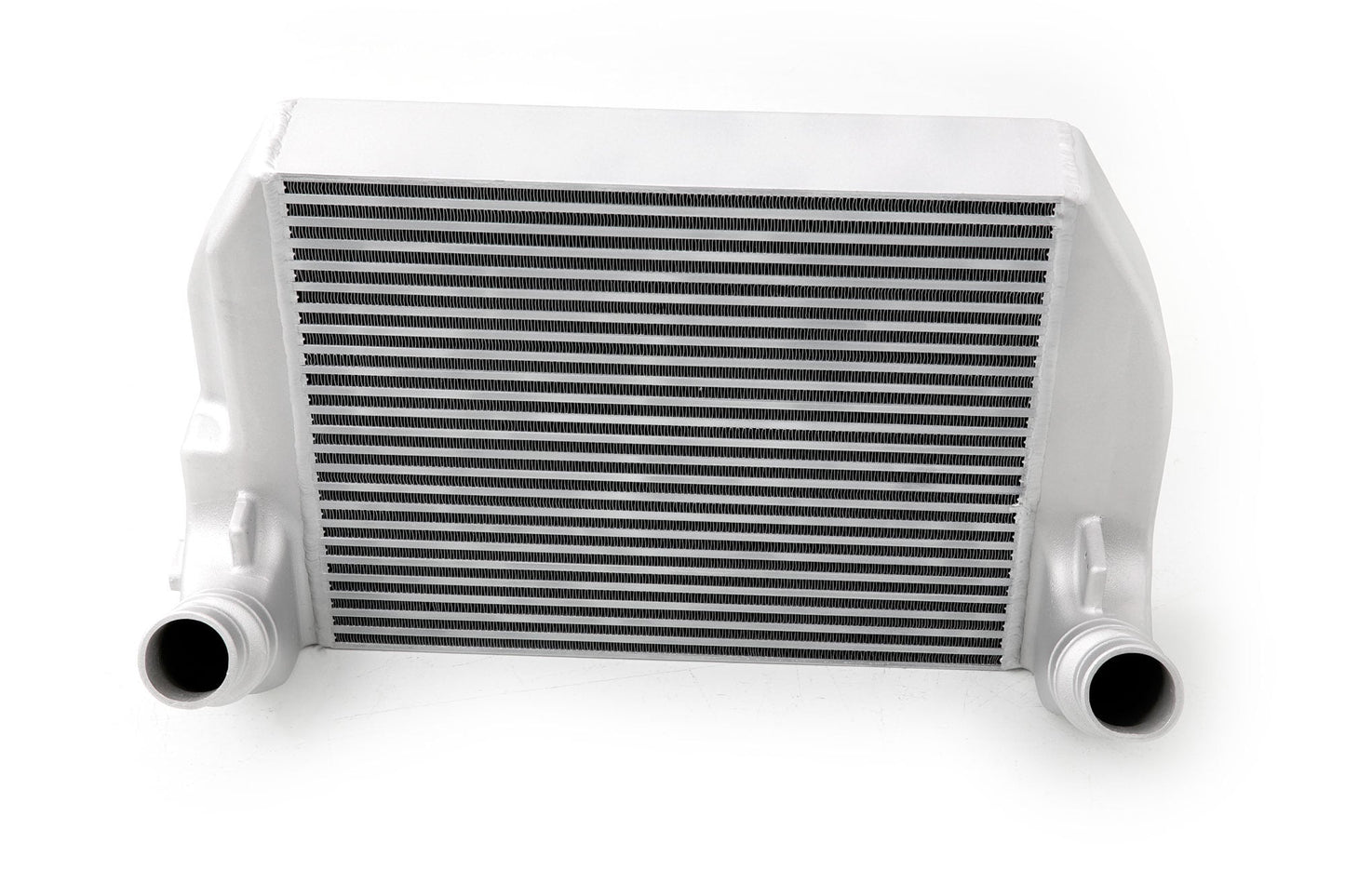

Mustang EcoBoost Race V2 Front Mount Intercooler

The ∆Core™ Race V2 is cp-e®'s biggest front mount intercooler for the 2.3L Mustang EcoBoost, built for the most powerful high-horsepower builds. We took everything that worked on our first EcoBoost Mustang FMIC and pushed it further. When our sponsored EcoBoost Mustangs started outrunning boosted V8s at the track, it was clear the big-power cars needed more cooling.

Because of its size, the Race V2 core requires removal of the active grille shutters. This is fully reversible and doesn't require any permanent modification to the car.

Race V2 FMIC Features

  • 21" x 17" x 3.75" core
  • Low-turbulence end tanks
  • Minimal pressure drop
  • Maximized core design
  • Far lower, more consistent charge temps
  • Bolt-in; no vehicle modification needed
  • Fully cast end tanks

Development started by finding the largest core that could fit without any irreversible changes to the car, using a bar-and-plate construction for high efficiency.

We then designed end tanks to wrap that huge core without cutting, drilling, or permanent modification. Laser-cut brackets position the Race V2 in the factory location and align it with the stock intercooler piping, so you can upgrade the piping in stages as your power climbs.

Race V2 FMIC Construction

The cast end tanks are welded and pressure tested together with the core, and their internal shape is the result of hours of design work and computational flow analysis aimed at virtually eliminating turbulence. Oversized intercoolers often trade drivability for capacity, adding turbo lag and pressure loss from turbulent tanks. Our compact, efficient tanks keep the Mustang responsive while the core size grows dramatically.

The tanks spread airflow evenly across the entire core. In a typical intercooler the back half of the core handles only about 25% of the cooling, so even distribution is key to consistent intake temperatures.

Race V2 FMIC Highlights

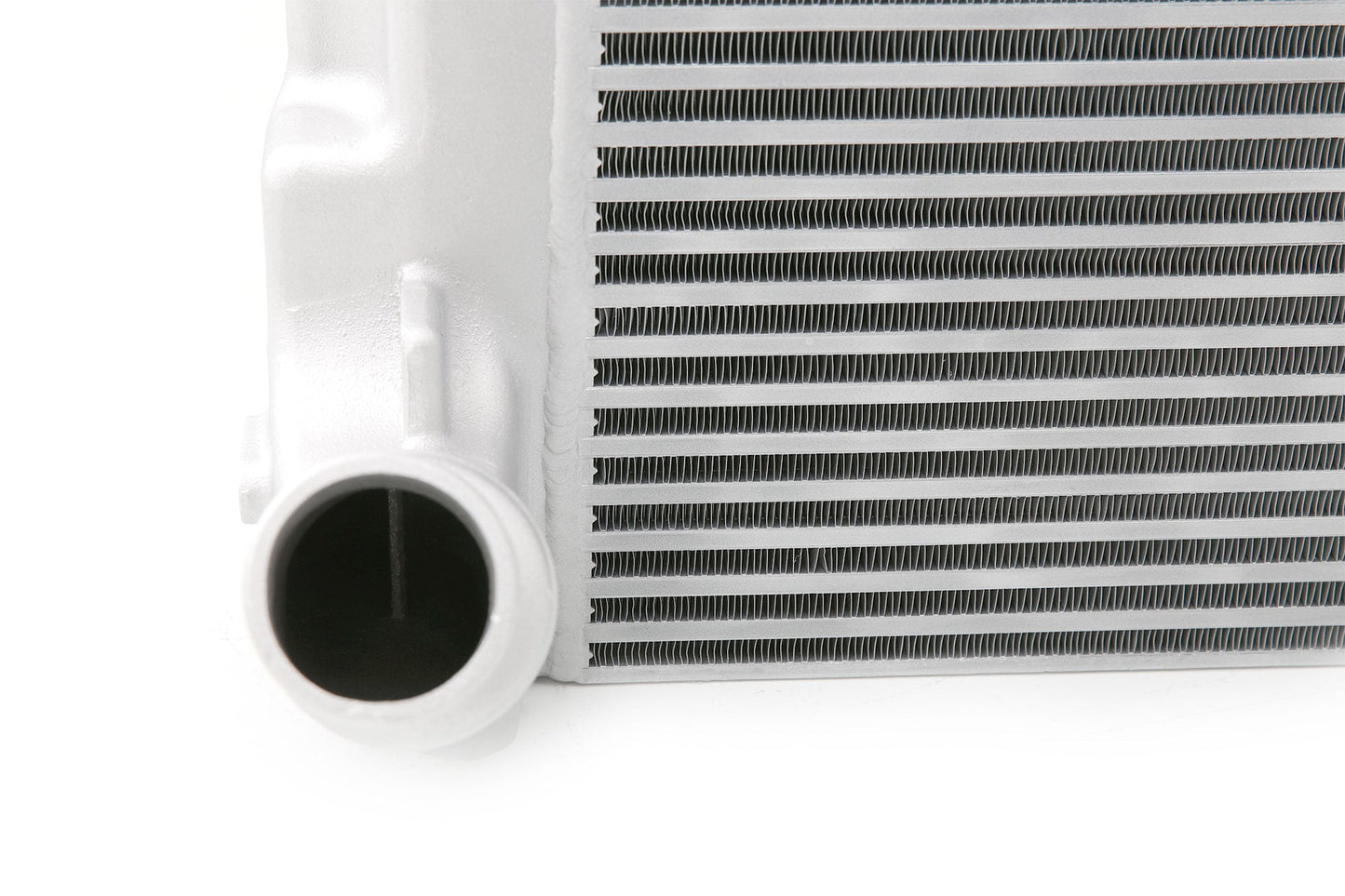

Turbulence Reduction Fins

Big cores usually come with pressure drop caused by turbulence. Precisely calculated turbulence reduction fins smooth the transition from the end tanks into the core, so the Race V2 delivers exceptionally low pressure drop with no penalty in spool time.

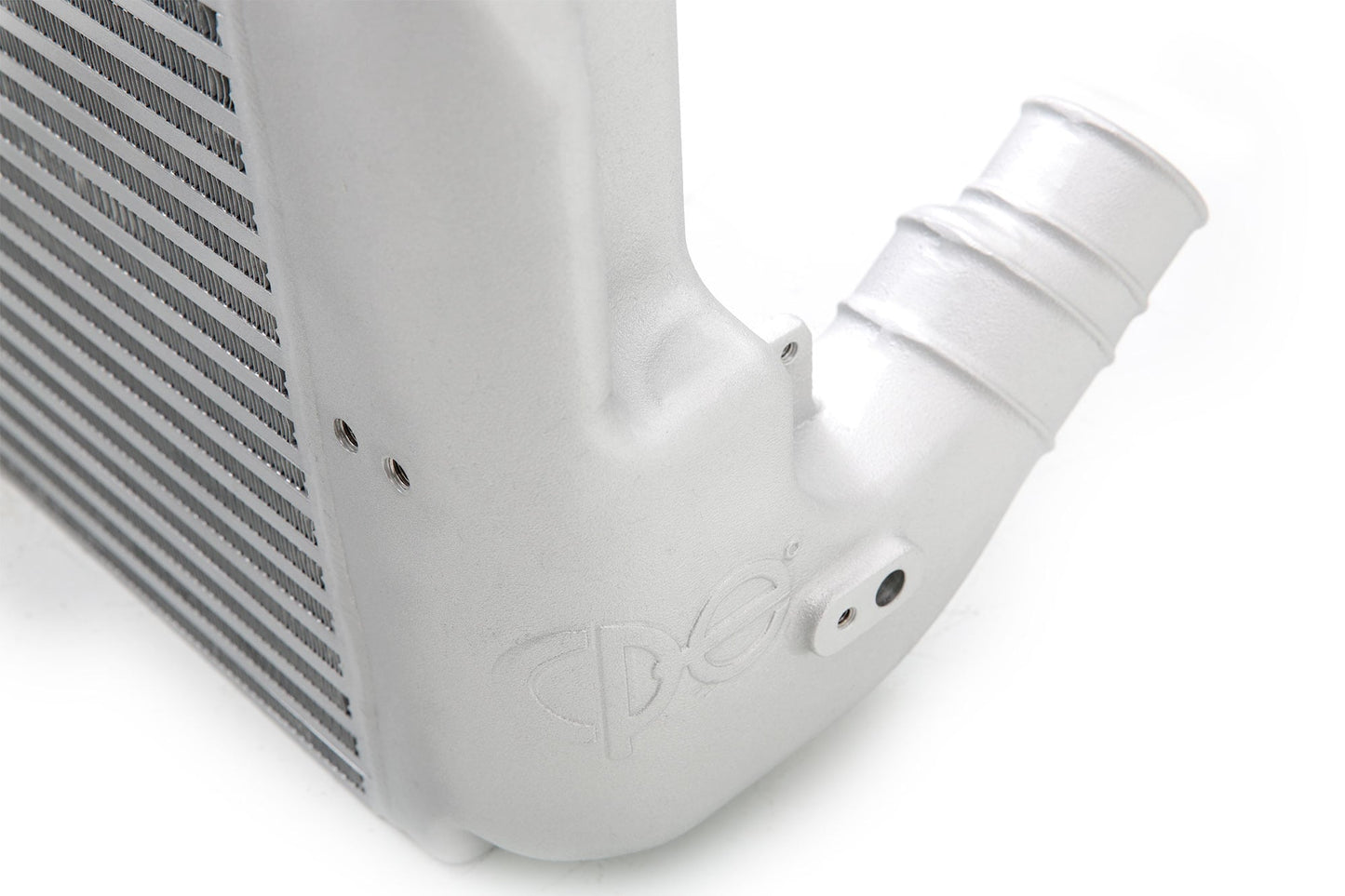

Fully Cast Endtanks

Fully Cast End Tanks

Cast tanks are the most durable choice for high horsepower; cut-and-welded sections simply can't match them. Casting costs more, which is why many manufacturers avoid it, but every cp-e® front mount intercooler uses fully cast end tanks.
Maximized Core Size

Massive Core Size

The EcoBoost Mustang has made remarkable power gains in a short time, so the Race V2 is sized to support everything from stock turbos to big single-turbo builds, without modifying or removing stock parts. Paired with our fin design, it's a top choice for any level of build.
