TopHat™ Ford Mustang GT ('05-'07) & GT 500 ('07-'12) Fuel Hat

TopHat™ Ford Mustang GT ('05-'07) & GT 500 ('07-'12) Fuel Hat

Regular price $669.65 USD
Regular price Sale price $669.65 USD
Sale Sold out
Shipping calculated at checkout.

SKU:

Installation Instructions

Click Here for Install Instructions for the TopHat™ Ford Mustang GT ('05-'07) & GT 500 ('07-'12) Fuel Hat (FDTH00002B)

Box Size

8 in x 8 in x 8 in

Box Weight

6.0 lbs.

Lead Time if Out of Stock

Lead time for this product, if out of stock, is 3-6 weeks. We try to keep a few on the shelf, but surges can drive it out of stock.

View full details

Mustang GT 4.6L 3V & GT500 5.4L Fuel Pump Hat

The 4.6L 3V in the Mustang GT is a legend, with a massive following and huge aftermarket support; there's almost nothing that hasn't been done to it. Making power takes a steady supply of fuel, and that's where the TopHat™ from Custom Performance Engineering, Inc. comes in. It holds up to three fuel pumps, and customers commonly run AEM, Walbro 255, Walbro 400, or Walbro 430 series pumps.

The TopHat™ is designed to handle up to three 465 LPH pumps while staying plug-and-play, easy to install, and reliable, with features that make the upgrade simple and get you to your power goals.

Engineered and manufactured by Custom Performance Engineering, Inc., the TopHat™ is the ultimate fuel system upgrade for the 2005–2007 Mustang GT and 2007–2012 GT500. Whether you're adding a second pump for more power or targeting 1,200 hp on ethanol, it's an all-in-one solution.

Return fuel is routed through a ½” stainless steel tube to the bottom of the tank, reducing aeration for a more consistent pickup. A side port channels fuel away from the pump pickup to further reduce aeration, and the included O-ring plug lets you block off either direction.

Mustang 4.6 3V & 5.4 4V Fuel Hat Features

  • CAD/CAM/CMM engineered and manufactured
  • CNC-machined billet 6061 aluminum
  • E85 ethanol ready
  • Up to 3 x 465 LPH or 3 x 255 LPH pumps, mounted vertically
  • Integrated merge from all pumps, with no extra Y-block or plumbing
  • Uses the OEM siphon

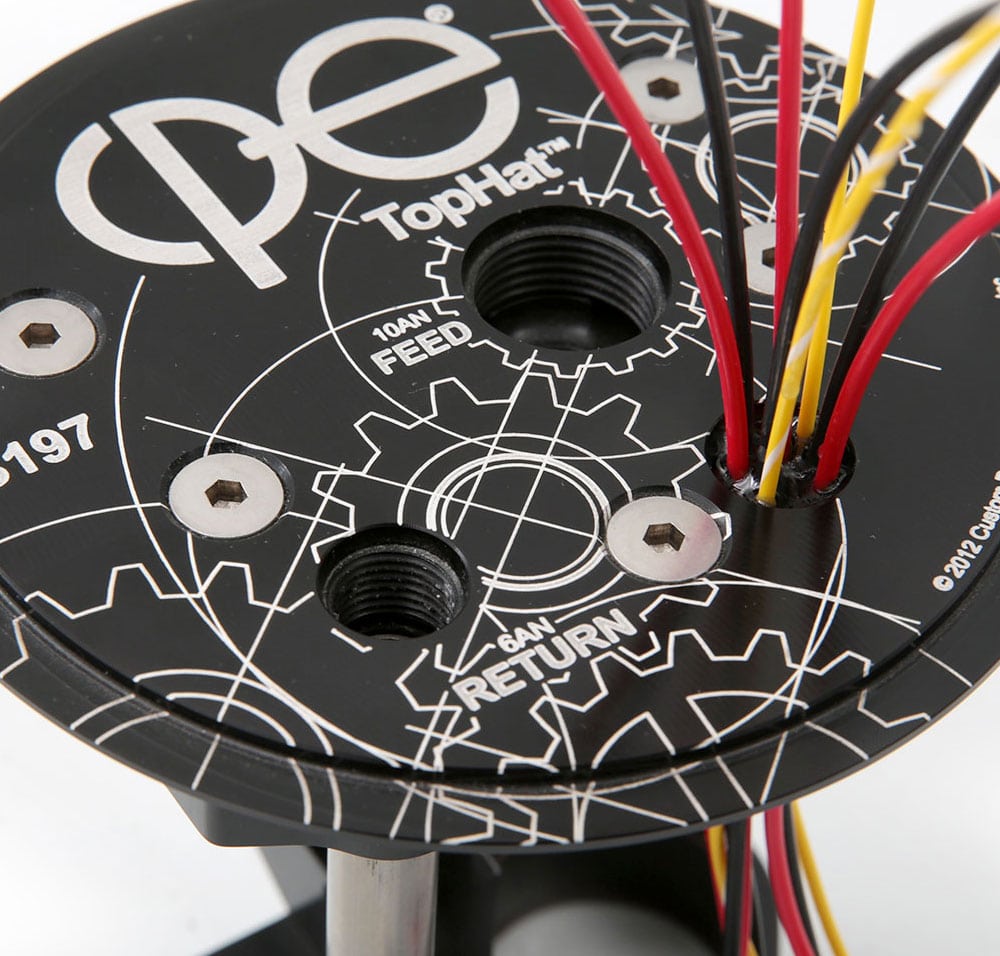

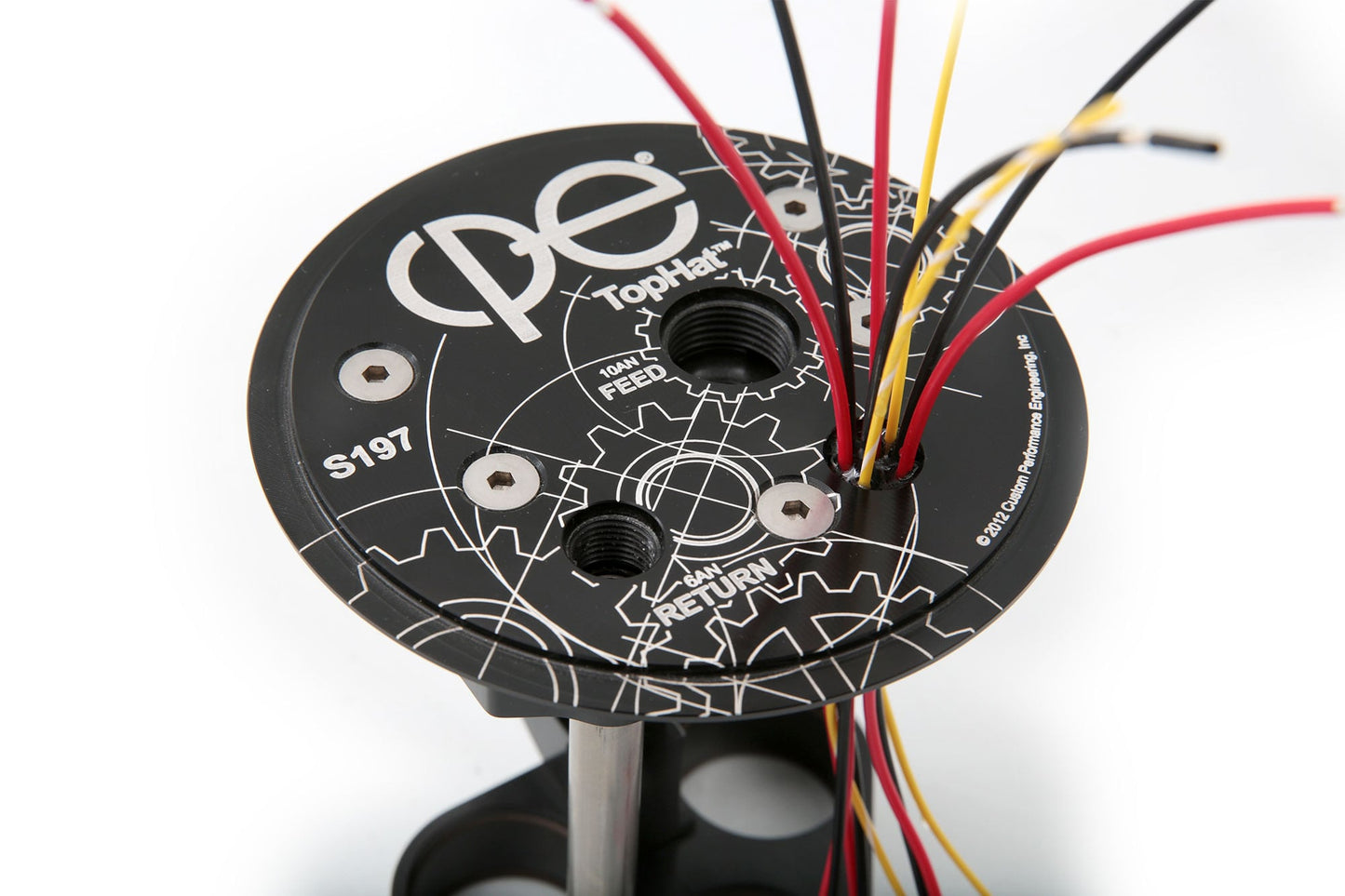

  • -10 AN feed
  • -8 AN return
  • Low-profile fitment
  • Integrated mount for the OEM fuel level sender

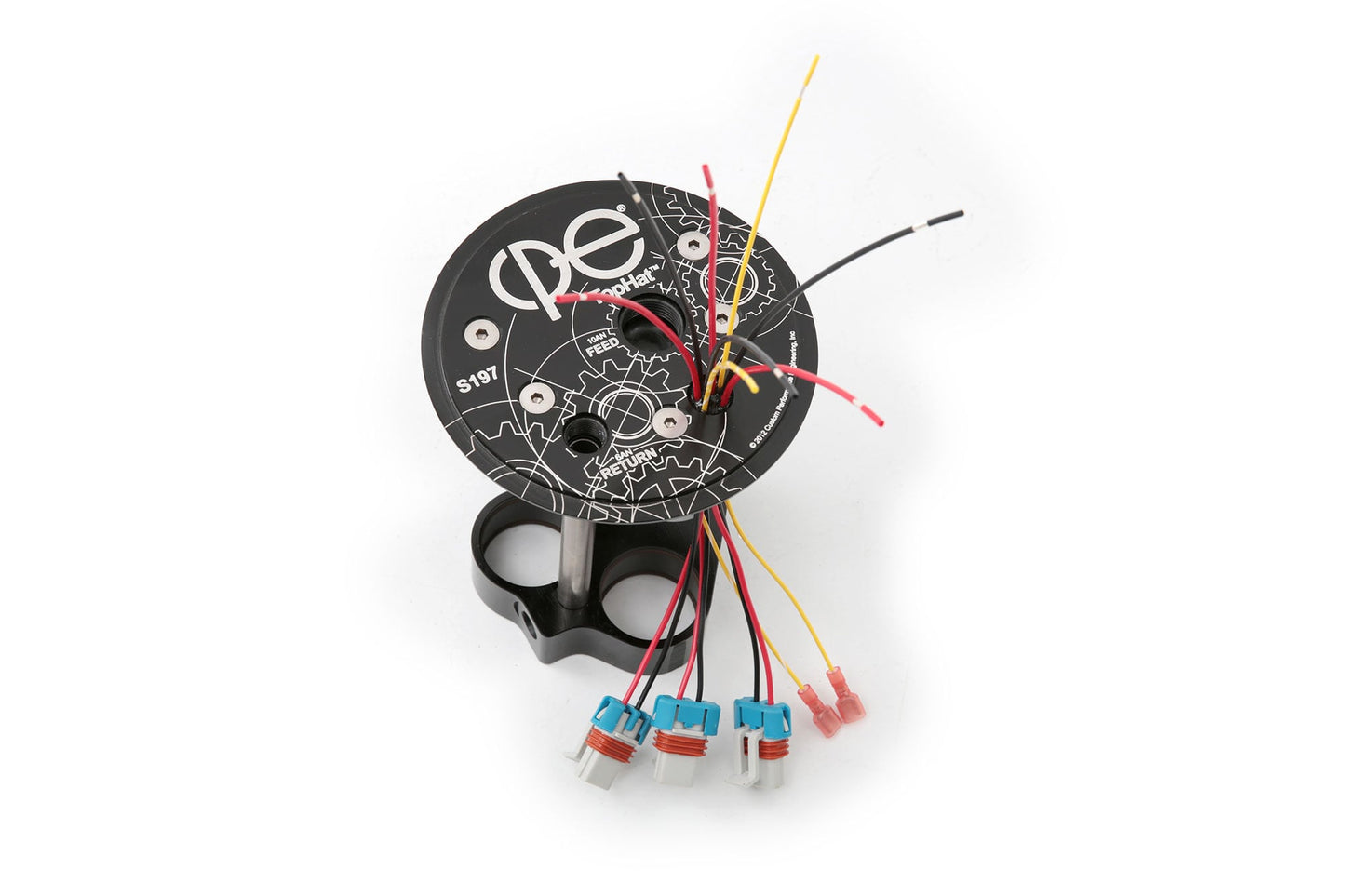

  • Hermetically sealed wiring with O-ring

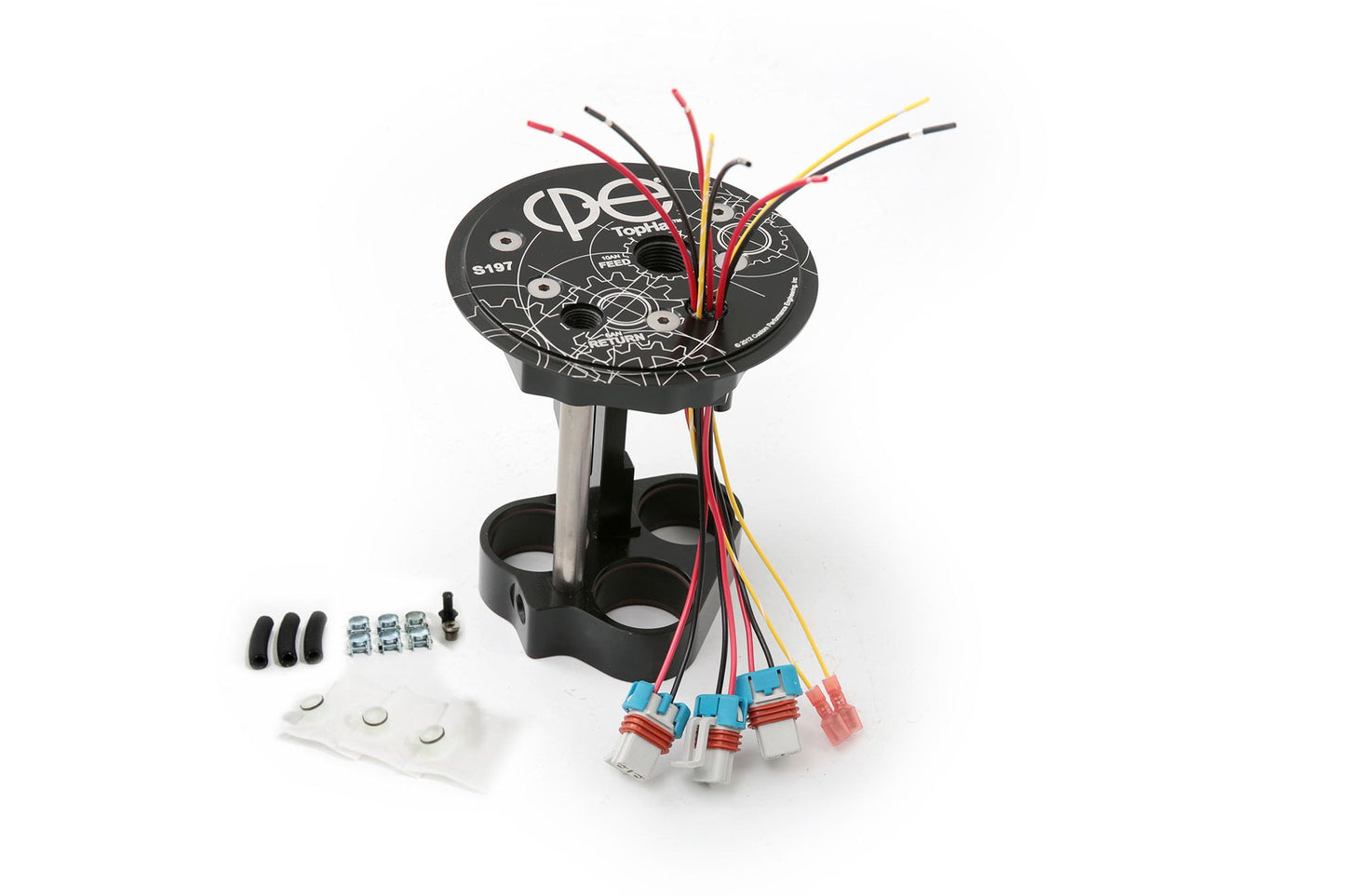

  • Hardware, filters, fuel lines, clamps, and more included for various configurations

Supports Up to 3 Pumps

The TopHat™ supports up to three 400 LPH fuel pumps, delivering far more fuel than common 255 LPH pumps. O-rings secure each pump at the ideal height and isolate vibration from the aluminum body.

Integrated Merge

We built the merge for all three pumps into the hat itself, cutting upgrade cost, reducing part count, and eliminating extra plumbing that could leak. Easy installation is a top priority for our customers, and for us.

OEM Fit and Finish

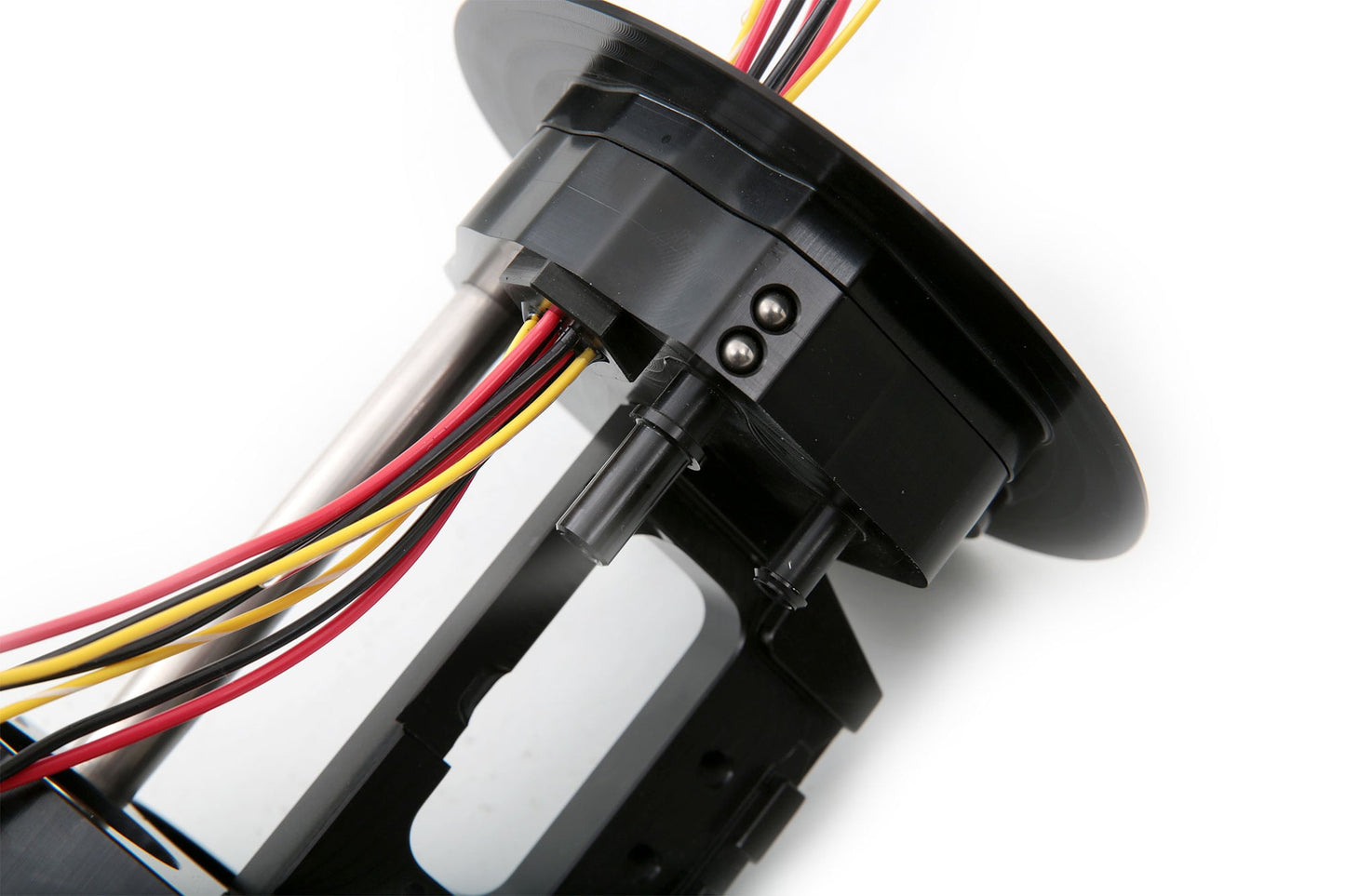

Through reverse engineering with a CMM arm, modeling OE components, and precision CNC manufacturing, the TopHat™ is as plug-and-play as possible. It uses the factory siphon system to draw fuel from the other side of the tank, and CNC-milled features mimic the OEM design to place the factory level sender in exactly the stock position.

The wiring harness is isolated and sealed from the tank with a proprietary Delrin wire seal. Delrin has one of the highest fuel resistances of any plastic, chosen for long-term, trouble-free operation.
