Custom Performance Engineering

xFlex™ Stage 2 Ford Focus RS Rear Motor Mount

xFlex™ Stage 2 Ford Focus RS Rear Motor Mount

Regular price $320.53 USD
Regular price Sale price $320.53 USD
Sale Sold out
Shipping calculated at checkout.

SKU:FDXM00019B

Box Size

12 in x 6 in x 3 in

Box Weight

6.0 lbs.

Lead Time if Out of Stock

Lead time for this product, if out of stock, is between 1-2 weeks. It is a popular item that we try to keep on hand, but surges can drive it out of stock.

View full details

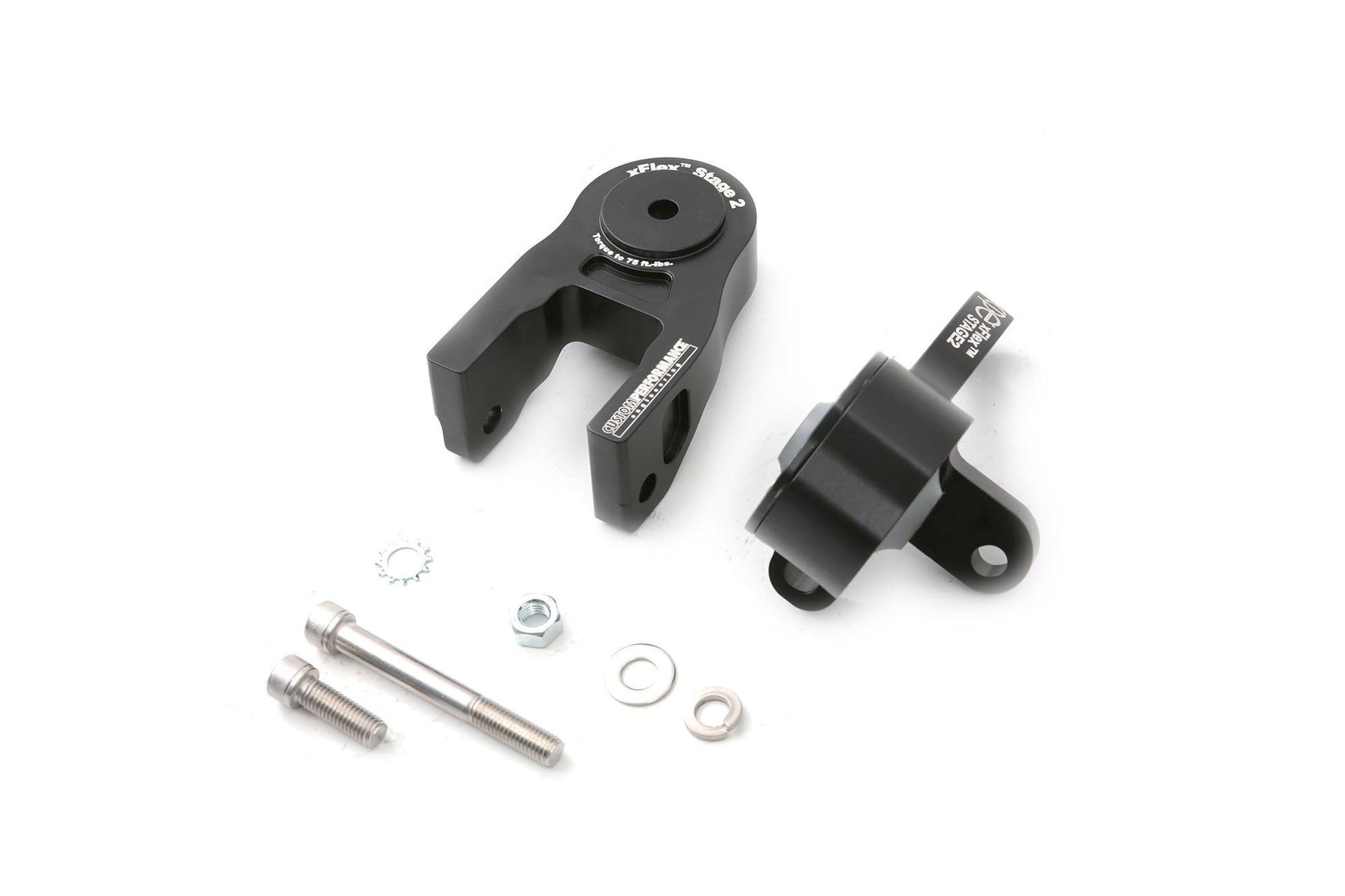

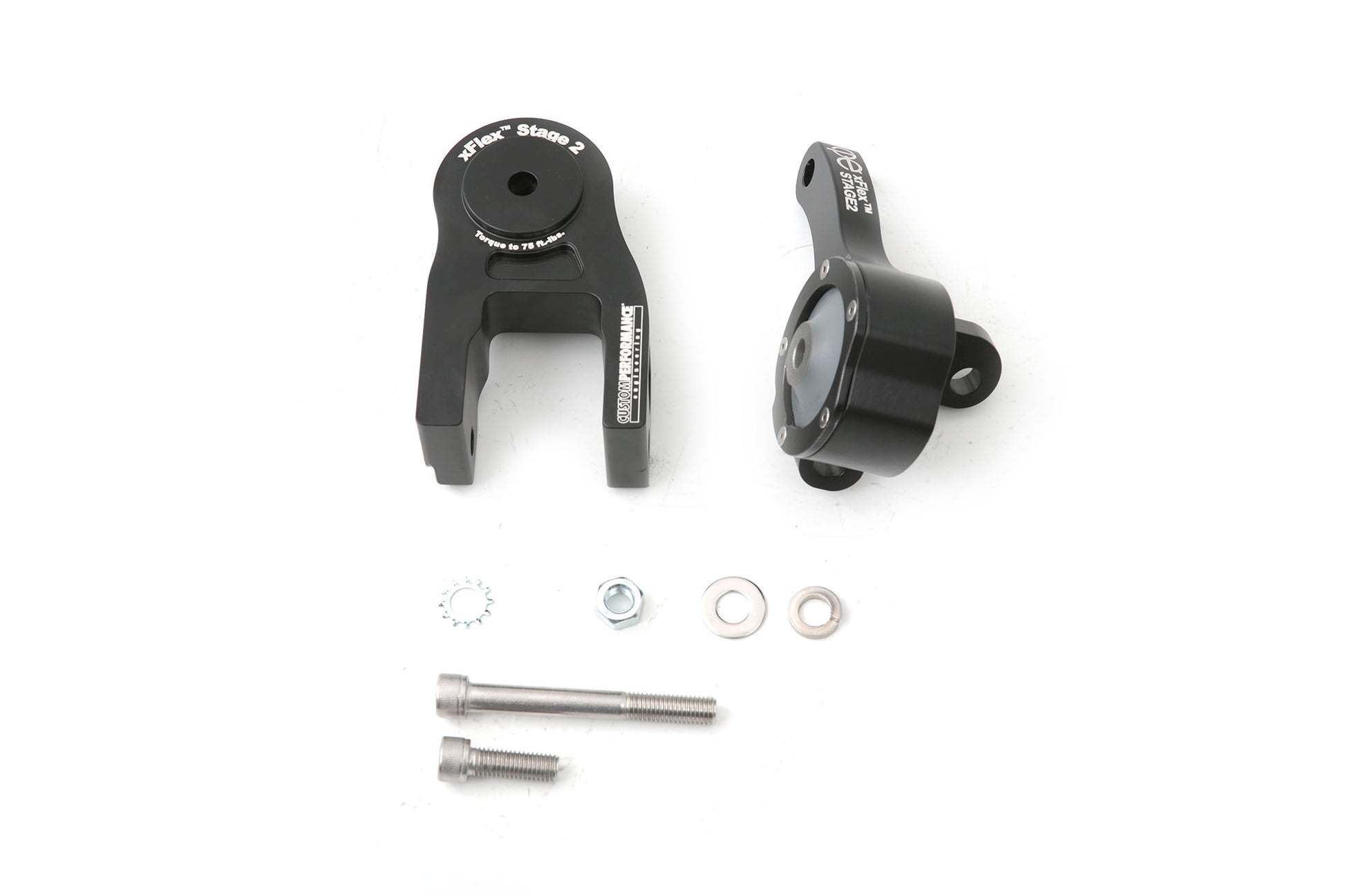

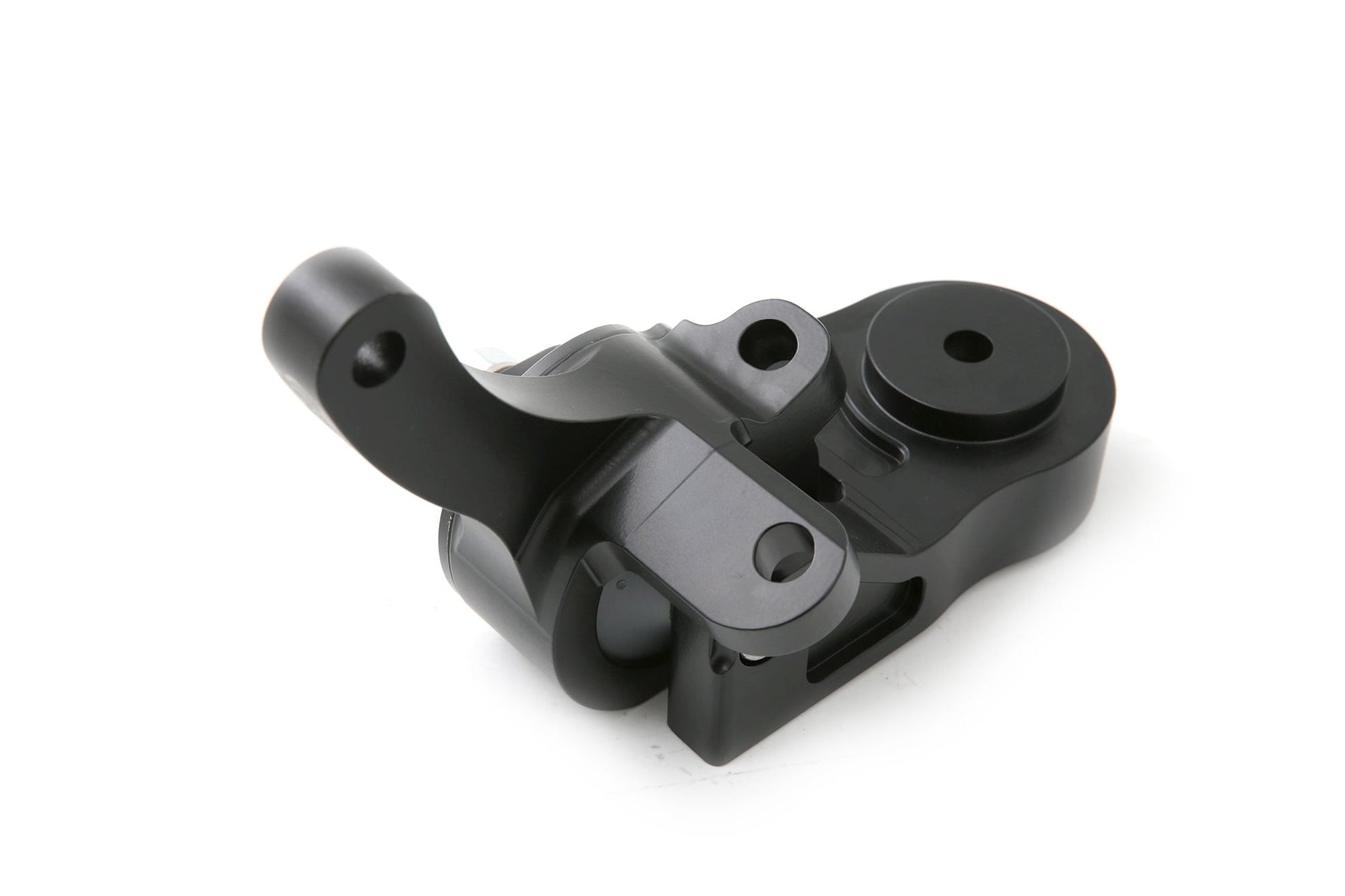

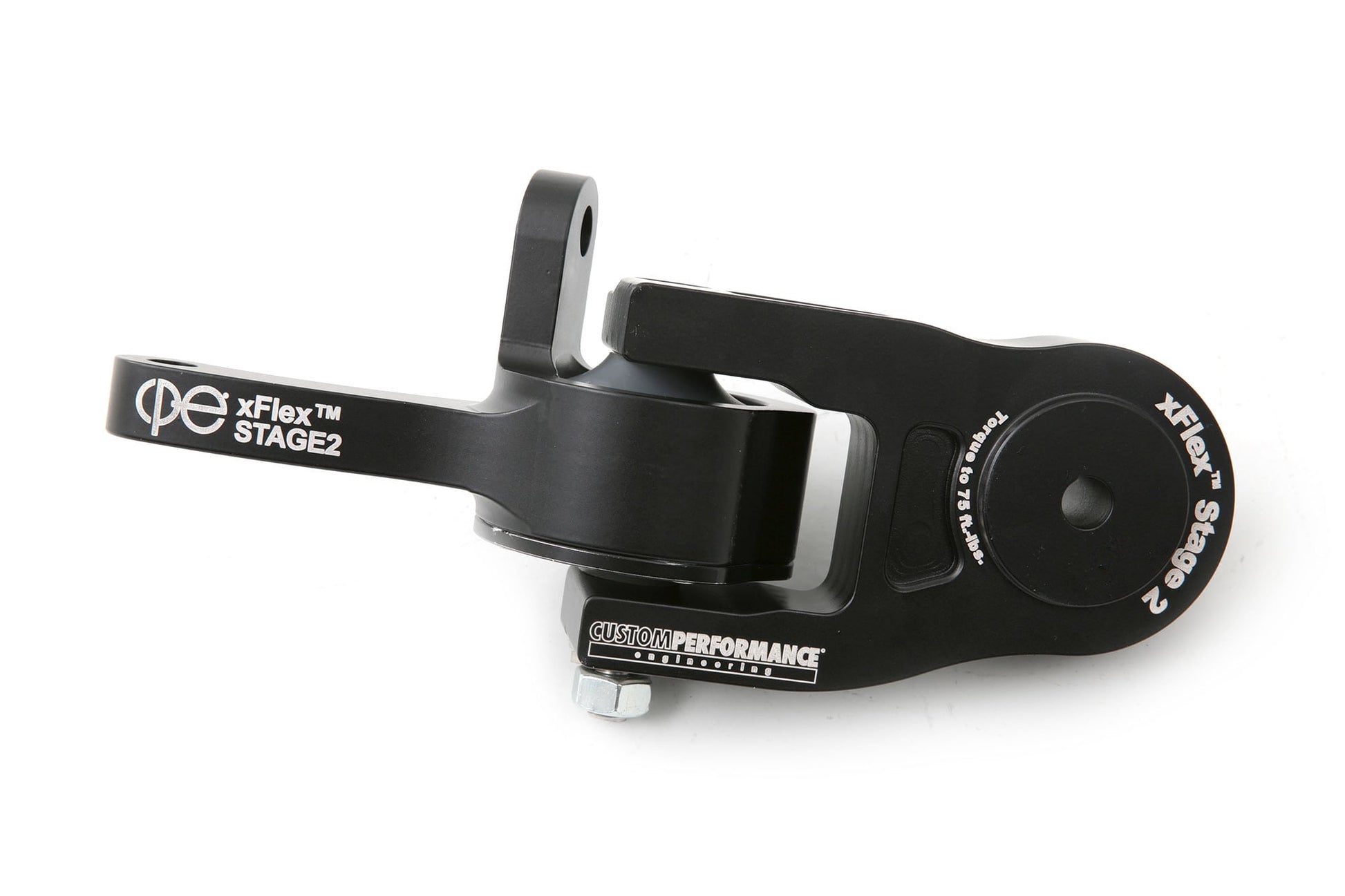

Ford Focus RS Stage 2 Rear Motor Mount

Custom Performance Engineering, Inc. took a completely fresh approach with this Focus RS rear motor mount. After studying the factory rear mount shared with the Focus ST and removing it for inspection, we knew a far better design was possible.

Ford's EcoBoost mounting system uses two side mounts as a pivot, with the rear mount there to keep the engine from swinging like a pendulum. The factory mount orients its bushing horizontally, so forces act on it in two planes. That type of bushing isn't designed for this, and the stock rear mount often can't adequately control engine movement.

Focus RS RMM Design

We found a way to load the bushing in a single plane. By redesigning the entire Focus RS RMM, we mounted the bushing vertically so the engine's pendulum motion compresses it properly. The result is a much stiffer system that still uses a soft 65 durometer bushing.

We also use an EPDM rubber bushing. Urethane can begin failing at temperatures as low as 200°F and generally needs a higher durometer to hold together. The Focus rear mount sits in a hot spot that transfers a lot of heat to the bushing, so urethane is the wrong choice. EPDM withstands that heat, and its higher density allows a lower durometer with excellent reliability and support. That keeps cabin vibration down, since higher durometer bushings raise NVH (noise, vibration, and harshness).

Focus RS RMM Benefits

Getting this design right took time, but it was what the application demanded.

Testing shows the mount holds the engine firmly in place while its low durometer bushing keeps cabin vibration low. Expect some added vibration at certain points in the drive, which is a natural result of stiffening the engine mounts.

Focus RS RMM Features

  1. Billet CNC-machined construction
  2. EPDM bushing
  3. Stainless steel hardware
  4. Vertically mounted bushing for greater durability and effectiveness
  5. Stabilizes rotational engine movement
  6. Made in the USA
  7. Limited lifetime warranty

EPDM Bushing

We use EPDM rubber bushings instead of the polyurethane most mount makers rely on. EPDM offers much better vibration resistance and exceptional resilience, stretching and even developing small surface cracks without losing strength. It costs more to produce, but it's a superior bushing material.

Pressed Center Insert

Our metal inserts are pressed into the EPDM bushings for a perfect, gap-free connection. Other manufacturers cut the bushing to fit, leaving tiny gaps where the metal can vibrate. Our construction lets the EPDM absorb vibration while the insert moves smoothly with it.
    • 5 stars: 2 (100%)
    • 4 stars: 0 (0%)
    • 3 stars: 0 (0%)
    • 2 stars: 0 (0%)
    • 1 star: 0 (0%)
    T
    Timothy S.
    Great motor mount

    Great motor mount. Kind of a pain in the neck to get the top bolt (the only the plastic clip goes over) back in and tight because there’s no space with the bigger mount. It other than that it’s a great mount. You will notice a lot of NVH in the cabin specially with the ac on at idle but driving it you don’t even notice. They were awesome with communication as well. Thanks again!!

    J
    JLRS125
    cp-e™ xFlex™ Stage 2 Ford Focus RS Rear Motor Mount

    Great product. Very well made. Night and day difference compared to stock. Car drives a lot smoother through the gears. No more wheel hop on launches. Would highly recommend this product.
